LED vs. Tungsten: Not Such a Hard Choice Afterall

24 05 2012

The anatomy of an LED.

I have had this argument with colleagues countless times and it looks like I will finally get a bit of retribution on the issue.  Though LED and Tungsten are not the only two types of lighting units employed in film and video production (HMIs and Fluorescents being the other two big contenders), there has been a huge push by manufacturers of late to bring LED technology to the forefront as a major player, possibly even as an alternative to the tungsten arsenal.

The proponents of LEDs, or light emitting diodes, will generally argue one or a combination of several points heavily: temperature, weight and ease of use.  There is no argument that LEDs are a much cooler alternative to a tungsten light.  In fact, there is hardly any heat at all from these instruments, even after extended use.  Also, because the units are just a panel of light emitting diodes arranged in vertical and horizontal grids, these instruments tend to be lighter, more ergonomic and easier to transport.  The last cornerstone of the pro LED faction is the ease of use, as many of these instruments have not only built-in abilities to dim the emitted light, but also color temperature controls as well.  In theory LEDs seem like a no brainer, don’t they?  If you took these arguments at face value, then sure it would be; however, if you delve a little deeper into the makeup of light, vision and how cameras read the color spectrum, then it’s not such an easy sale.

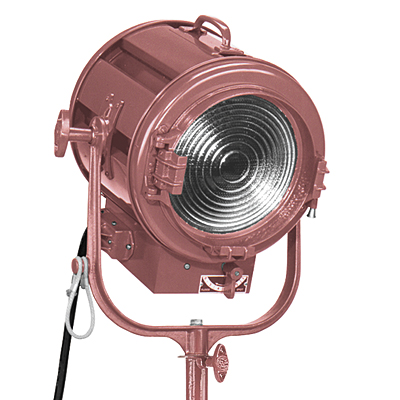

A classic Mole Richardson tungsten unit

I have always been a strong supporter of the other side of the coin.  Unless I have to, I rarely use anything outside of tungsten or HMI instruments, with LEDs being my last choice, even below fluorescents tube technology instruments like Kino-Flos.  Tungsten instruments have been industry standard since nearly the beginning of motion picture artificial lighting use over 80 years ago.  Tungsten lights work by heating a filament of tungsten in a halogen gas encased tube to temperatures hot enough to glow.  Being a continuous source, these instruments have an arc that creates a very consistent, clean looking stream of visible light both to the eye and through the lens of a camera.  Because these lights are heating the filament to extreme temperatures, they do get hot, and yes, the housing to contain the lamps has to be built in such a way that the lighting instrument isn’t dangerous to use, which more times than not can make these units big and bulky for the amount of output they produce.  All of these physical properties do have their disadvantages, but the one point that can’t be argued is that tungsten instruments produce a very pleasurable light for film and video production.

To illustrate the point, here is a video from the Academy of Motion Picture Arts and Sciences that explains some of the correlations between film emulsions and color, and the relative shortcomings of LED units in today’s productions.  Further results of their extensive studies on the subject are available on the Academy’s Web site at: http://www.oscars.org/science-technology/council/projects/ssl/index.html.

Though it didn’t take a multi-million dollar study by the Academy to convince me that I’d go with a 40-year-old Tweenie over a brand new LED, it does feel good to have some deeply scientific research on hand to help prove my point to detractors.  I will admit that LED technology is an interesting and potentially wonderful tool for filmmakers, but err on the side of caution that this technology is not quite where it needs to be yet to fully incorporate into production workflows on set, unless of course you are going for a specific look that these inferior discontinuous instruments produce.  In that case, I guess you are creating art.

Advertisements




Gear Review: Lowel Rifa-Lite EX 500w Soft Light

30 08 2011

Stock Photo from Lowel

Make: Lowel

Model: Rifa-Lite EX55

My use: I’ve used these lights on an array of projects and ordered two of these during my tenure at UNC-Greensboro.  I used them primarily for a key light for interviews and green screen shoots.  Chances are, I will buy one for my personal kit in the near future.

Average Price: $488.50

My thoughts: I love this light.  Absolutely love it.  It is compact, easy to carry and works as a wonderful soft key source for interviews and green screen shoots.  In larger productions, it’s useful for bringing up the ambiance or a small fill.  The light is soft, flattering and has a nice warm tinge (which I prefer).  I bought these lights primarily as replacements for what I was using Kino-Flo lamps for work.  To me, Kino-Flos have always burned a little cool (the 3200 lamps) and never match properly with the rest of a tungsten set.  Now, to be honest, I do love Kino-Flos under certain conditions, especially if time is of the essence or for small doses daylight fill, but for interviews and the like, they are hard to control, burn cool and bulky.  With a Kino-Flo you need to mount on C-Stands, plug the header in the ballast and then the ballast into the wall, which is just a pain in the butt in a small office or the like.  The Lowel Rifa 55 comes in a carrying case that contains the head with folded chimera, stand and power cable; furthermore, it’s about two feet long.  Setting these up takes no time at all and the tungsten filament, though it does get hot, provides a pleasant glow.

Technical Specs from the Manufacturer:

Rating 500 watt maximum
Socket (Lampholder) 2-Pin
Lens (Condenser) Not Applicable
Reflector (Mirror) Silver interior softbox
Mounting Fits any standard 5/8″ stand or stud
Yoke Not Applicable
Cable 4′ Captive cable, 120V power cable, line switch, 120V Grounded Edison Plug
Focusing Not Applicable
Weight 2.5 lbs (1.1 kg)
Dimensions Collapsed length: 24″ (61 cm)
Face: 21 x 21″ (53 x 53 cm)


Bottom Line
: If I’m traveling light and shooting interiors, then chances are I have one or two of these instruments with me.  They are a versatile, compact soft light that provides a beautiful warm glow, perfect for interior interview setups, lighting talent on green screen shoots and easy-to-tuck away fill/ambient lights on larger sets.  For the price, you can’t beat it.





Gear Review: K5600 Joker Bug 800w HMI

14 08 2011

Copyright K5600 - Joker Bug 800w Kit

Make: K5600

Model: Joker Bug 800w HMI

My use: I ordered two of these during my time at UNC-Greensboro’s Office of Online Learning.  At the time I ordered these, the division didn’t have any HMIs.  We rarely had large lighting setups, so extremely powerful HMI instruments weren’t needed.  However, I did want to build a small HMI arsenal, and wanted what we ordered to have some punch, so I went with the 800w version of the Joker Bug (K5600 also produces 200w and 400w versions).

Average Price: $6,390 per kit

My thoughts: For the type of work we used our HMIs on, the Joker Bug 800’s were a perfect fit.  They pack a sold punch lumen-wise, but are small enough instruments in regards to electrical pull that you can plug them into standard wall outlets.  One of the nicest attributes of these instruments were the compact case in which they came.  The small hardshell case was on rollers, stackable and contained everything you needed for the light: head, ballast, header cable, 4 lenses and barndoors.  Being PARs, these little guys really dished it out, and with the various lenses that include Super Wide, Wide, Medium Flood and Frosted Fresnel, you could easily shape the output for your desired look on set.  With a little diffusion, these instruments were also a wonderful exterior fill, and compact enough to not break your back on location.

Technical Specs from the Manufacturer:

Light Fixture
Rating 800 Watts
Socket (Lampholder) G22
Lens (Condenser) 4- included: Super Wide, Wide, Medium Flood, Frosted Fresnel
Mounting 5/8″ Stand mount
Weight 6 lbs (2.7 kg)
Dimensions 13 x 9 x 4.25″ (33 x 23 x 9.1cm)
HMI Ballast
Rating 800W, 110 – 240V AC, 50 / 60Hz
Cable 25′ VEAM 1/4 turn twist
Weight 8 lbs (3.6kg)
Dimensions 10 x 9 x 3.5″ (25.4 x 22.8 x 8.9cm)
Kit Weight 41 lbs (19kg)


Bottom Line
: These are extremely versatile small wattage HMI instruments.  If you are a smaller production company or a freelancer that doesn’t do too many large scale productions, then I highly recommend these units if you are looking to build a small HMI arsenal.





R.I.P. Gunnar Fischer (1910 – 2011)

12 06 2011

Gunnar Fischer (1910 - 2011)

Legendary Swedish cinematographer Gunnar Fischer passed away yesterday at the age of 100.  Fischer’s lighting and camera techniques brought to life some of Ingmar Bergman’s most iconic films from the director’s early period.  Though not as well known as future collaborator Sven Nykvist, Fischer’s style and visual eye has dazzled cinema-goers for nearly 60 years, though his general recognition remains mostly silent.

Born in Ljungby Vasternorrlands Lan, Sweden, on November 18, 1910, Fischer originally studied painting at Otte Sköld.  Following his education, he enlisted as a chef with the Swedish Navy, before turning to a career in cinema at Svensk Filmindustri. His first film credit was as assistant camera on Smålänningar in 1935, and his first feature as a director of photography came in 1942.  He worked with several international directors including Danish master Carl Theodor Dreyer and British director Anthony Asquith.  However, his most endearing and remembered artistic partnership was with Bergman from 1948 to 1960.

The fruits of Bergman and Fischer’s collaborations include such films as Harbor City, Smiles of a Summer Night, The Seventh Seal, Wild Strawberries, The Magician and their final collaboration, The Devil’s Eye.  Like many fellow Swedish cinematographers of the era, Fischer was a master of practical lighting and operated his own camera on all his films.  Such classic images as Max von Sydow playing chess with Death or the wide dancing chain on the hill side from The Seventh Seal still move and touch viewers of all generations.

Bergman and Fischer went their separate ways after The Devil’s Eye in 1960.  Bergman went on to form another strong artistic partnership with cinematographer Sven Nykvist which lasted through almost the rest of the director’s professional career.  Fischer continued shooting feature films until 1979 when he retired.  In retirement, he continued to be close to his craft by serving as an instructor of cinematography at several prestigious Scandinavian universities.

An interesting article and interview regarding Fisher’s time working with Bergman from the Washington Post in 2008 can be found here:

http://www.washingtonpost.com/wp-dyn/content/article/2008/02/01/AR2008020100903.html
